Chelsea Crankshaft Driven PTO

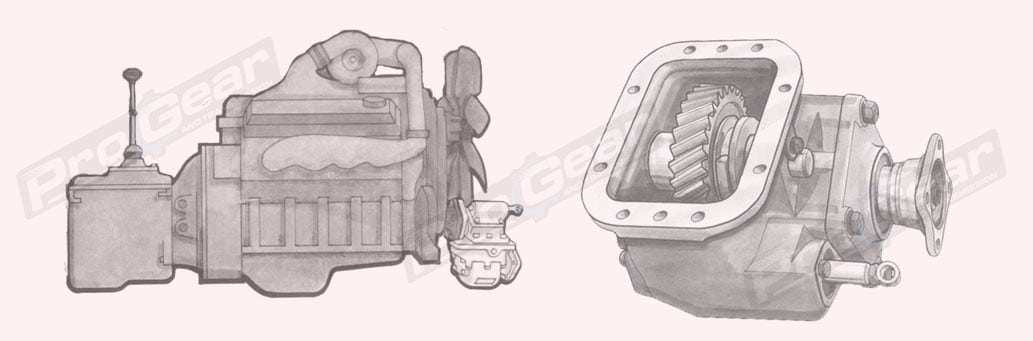

crankshaft driven PTO

A Crankshaft Driven PTO is driven by the front of the engine crankshaft. They are mostly used in heavy-duty and extra-heavy-duty applications requiring auxiliary power while the vehicle is in motion. A clutch-type Crankshaft Driven P.T.O. is preferred because it can be engaged without shutting off the engine. A mechanical shift can be used as long as the engine is shut off when engaging or disengaging the PTO. Our Chelsea crankshaft drive PTOs give you the ability to have more control over your PTO and what you can do with it. If you have any questions or need assistance don’t hesitate to call us at 877-776-4600 or 407-872-1901. We offer worldwide shipping and have experts standing by ready to help.

Chelsea 2230U Series PTO

Chelsea crankshaft driven PTOThe Chelsea 2330U Series PTO Front Mount Gear Box is an engine crankshaft-driven mounts on the front of the vehicle and is designed to operate from the crankshaft of the engine which allows the driver to shift “on the go”. The electric-over-air unit features an enlarged air shift piston to assure quick, reliable shifting, and heavy duty sealing to protect against air leakage. The 2330U series speed ratios range from 39% to 123% of engine speed. Seven output types are available, including Chelsea’s 360° rotatable flanges. Electronic over speed control is available to protect driven equipment from over-speeding.

2230U Series Specification 2230U
Percent of Engine Speed 88%
Standard Output Shaft Size 1-1/4″ Round w/ key
Intermittent Torque Rating (Lbs. ft) 225
Intermittent Torque Rating (N.m.) 305
Horsepower Rating for Intermittent Service
At 500 R.P.M. of Output Shaft (HP) 21
At 1000 R.P.M. of Output Shaft (HP) 43
At 500 R.P.M. of Output Shaft (Kw) 16
At 1000 R.P.M. of Output Shaft (Kw) 32
Approximate Weight 88 lbs.(40 kg)

Chelsea 2442 Series PTO

Chelsea 2442 Series PTO The economical 2442 Series is a manual shift PTO which requires the operator to stop the engine before shifting. It is available in seven different speed ratios, ranging from 39% of engine speed to 123% of engine speed. Shift options include air, wire, lever, electric-over-air, and the Chelsea PTO/Dump Pump Combo Valve. Wide selection of 442 Series output options available including grease-able shafts and 10 shift options.

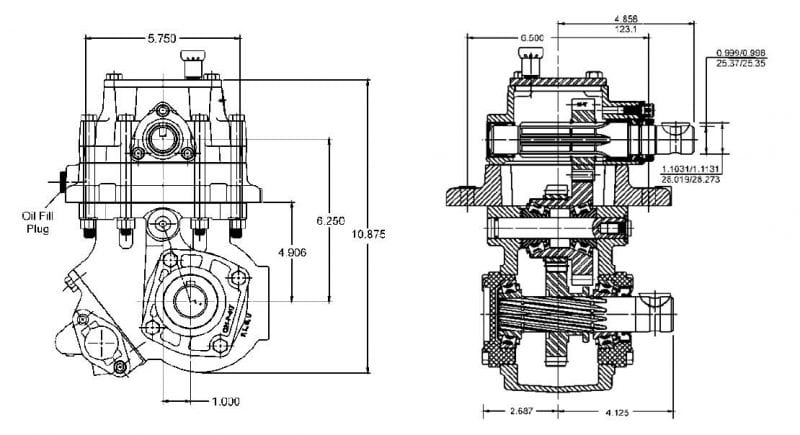

2442 series PTO housing dimensions

2442 Series PTO Housing Dimensions

2442 Series Specifications 2442*F 2442*L 2442*Q 2442*S 2442*U 2442*W 2442*X
Percent of Engine Speed 39% 50% 54% 74% 89% 104% 123%
Standard Output Shaft Size DIN 5462/ISO 14 (“XY” Output)
Intermittent Torque Rating (Lbs. ft.) 250 250 225 170 140 120 100
Intermittent Torque Rating (N.m.) 339 339 305 230 190 163 136
Horsepower Rating for Intermittent Service
At 500 R.P.M. of Output Shaft (HP) 24 24 21 16 13 11 10
At 1000 R.P.M. of Output Shaft (HP) 48 48 43 32 27 23 19
At 500 R.P.M. of Output Shaft (Kw) 18 18 16 12 10 9 7
At 1000 R.P.M. of Output Shaft (Kw) 36 36 32 24 20 17 14
Approximate Weight 69 lbs. (31 kg)
